ETHERNET ENABLE YOUR SERIAL DEVICES
The Vlinx? family of Serial Ethernet Servers transparently connects, configures, and communicates with serial devices over Ethernet using a single IP address. Available in 1, 2 and 4 port versions. Each model uses DB9 male serial connectors and supports RS-232, RS-422 and RS-485. Desktop, panel and DIN-mountable — Vlinx offers outstanding flexibility and value for industrial and commercial applications.
DETAILS
SERIAL ETHERNET SERVER OPERATION MODES
Virtual COM port
TCP/IP socket and tunneling
UDP/IP communications
Heartbeat ensures reliable communications
In case of a power failure or loss of the Ethernet connection, the Vlinx Serial Server automatically reconnects the TCP data connection.
Intuitive management software
Vlinx software allows simple access to the Serial Server menu settings. Telnet and Console mode may also be used to configure the server.
Once Vlinx is connected to the LAN, just open the B&B management software and it will instantly search the LAN and display the Serial Ethernet Servers found.
SPECIFICATIONS
Auto-detecting 10/100 Mbps Ethernet
Ports are software selectable for RS-232, 422 or 485
Enhanced temperature range: -10? to 80? C
Low latency/high throughput
Supports modem applications
Supports TCP Server, TCP Client, UDP, and virtual COM modes
Supports web and telnet consoles
LAN connections: 10/100 Mbps, RJ45: Serial: DB9 male
Power input: 12 VDC power jack (power supply included)

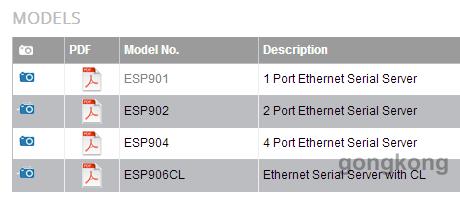

Dimensions: ESP901, ESP902: 3.4 x 4.5 x .9 in (8.5 x 11.5 x 2.3)
ESP904: 7.3 x 4.2 x 1.1 in (18.4 x 11.1 x 2.9 cm)
DIN rail and panel mount options
